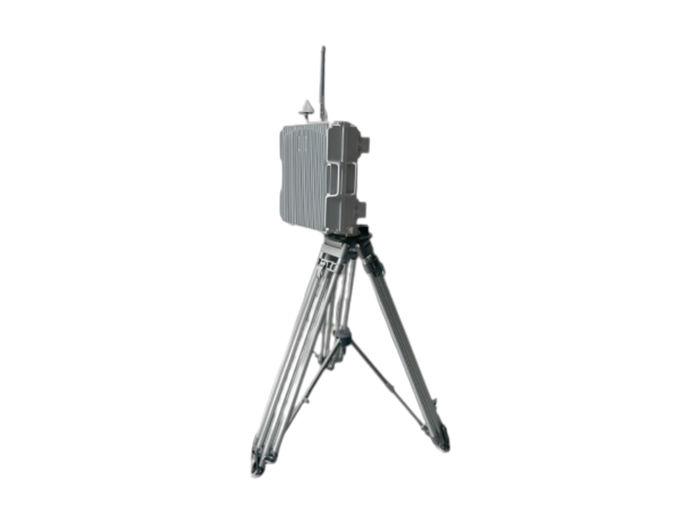

YA-YP-S Device Technical Specifications
Introduction
Specifications and Parameters of CQ-S EquipmentNo.ItemsTechnical Parameters1Frequency Range (Customizable to 11 Frequencies)Navigation Satellite SystemFrequency BandCentral Frequency (MHz)BDSB1I1561.098B1C1575.42B2I1207.14B3I1268.52GPSL1 C...
+86 18138856898Features
Specifications and Parameters of CQ-S Equipment
| No. | Items | Technical Parameters | ||
| 1 | Frequency Range (Customizable to 11 Frequencies) | Navigation Satellite System | Frequency Band | Central Frequency (MHz) |
| BDS | B1I | 1561.098 | ||
| B1C | 1575.42 | |||
| B2I | 1207.14 | |||
| B3I | 1268.52 | |||
| GPS | L1 C/A | 1575.42 | ||
| L2 C/A | 1227.6 | |||
| L5 | 1176.45 | |||
| GLONASS | L1 | 1602 | ||
| L2 | 1246 | |||
| GALILEO | E1 | 1575.42 | ||
| E5a | 1176.45 | |||
| 2 | Navigation Spoofing Function and Parameters | Defense Distance | 500M-15KM (according to customer needs) | |
| Spoofing Response Time | ＜10s | |||
| Spoofing Direction | Horizontal angle: 0°~360°, Vertical angle: -90°~90° | |||
| Output Power | 0-50W | |||
| Output Power Resolution | 0.25dB | |||
| Position Simulation Accuracy | ≤1m | |||
| Speed Accuracy | ≤0.5m/s(RMS) | |||
| Time Synchronization Accuracy | ≤20ns | |||
| 7 | Main Unit Dimensions and Weight | 410*190*335mm(Length × Width × Thickness) <20kg | ||
| 505*450*280mm(Length × Width × Thickness) <27kg | ||||
| 8 | Power Consumption | Standby ≤25W；Maximum Output<250W | ||
| 9 | Protection Level | IP66 | ||
| 10 | Operating Temperature | -40°~+70° | ||
| 11 | Communication Interface | RJ45 | ||
| 12 | Power Supply | AC100-240V | ||
| 13 | Product Features | Autonomous Defense：lFull-range, all-weather, long-distance automatic defense for drones; | ||
| Full Frequency Compatibility： BDS、GPS、GLONASS、Galileo; | ||||
| Spoofing Functions： Forced landing, directional expulsion, and pinpoint spoofing of drones; | ||||
| Navigation Guidance： Ability to spoof the positioning trajectory of drones, controlling them to move in various patterns such as constant speed, acceleration, and circular motion; | ||||
| Power Adjustment： Manual/automatic power adjustment for flexible control according to required defense distance; | ||||
| Ephemeris Synchronization：lIntegrated satellite receiver for on-orbit satellite time synchronization and optimal spoofing effect, automatically shielding co-frequency interference; | ||||
| Ephemeris Download： Download and inject satellite ephemeris, enabling signal simulation and transmission in scenarios where on-orbit satellite signals cannot be received; | ||||
| Integrability： Provides standard interfaces and protocols for secondary development, compatible with third-party systems such as drone detection equipment; | ||||
| Usage scenarios: national defense, public security, government agencies, petrochemical industry, energy and water conservancy, airports and high-speed rail, cultural and tourist attractions, large events, and other important and sensitive low-altitude security scenarios. | ||||
