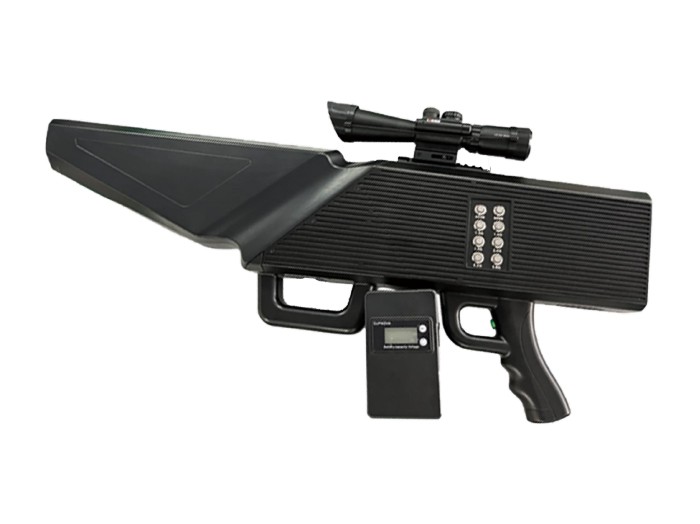

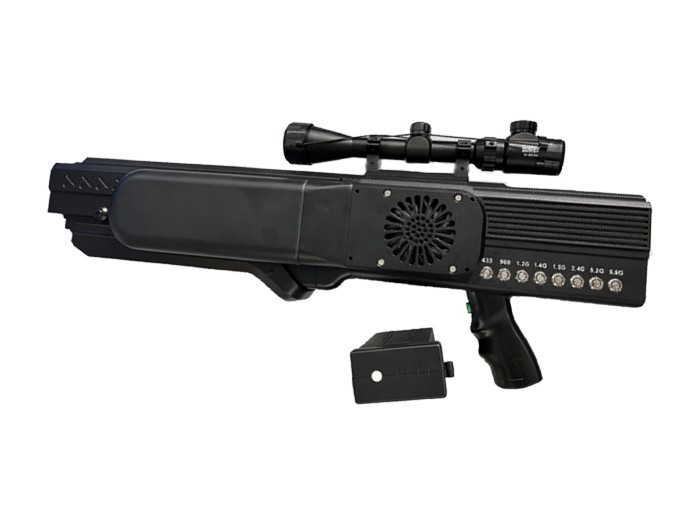

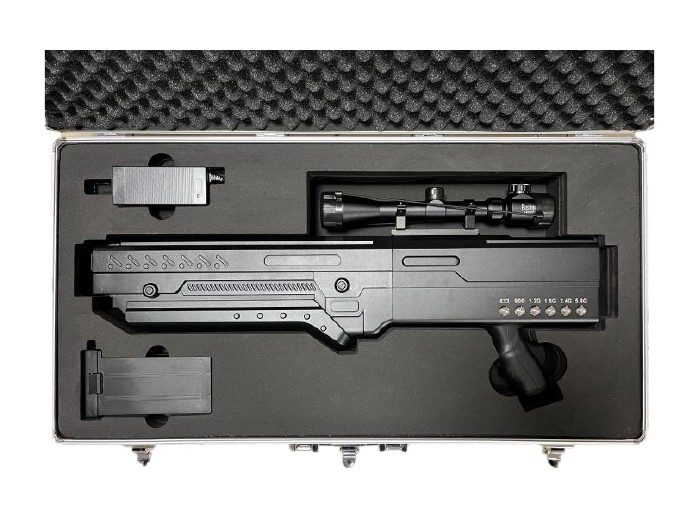

Drone Counter Gun (YA-BXQ-006)
Introduction
PRODUCT FEATUREUse of UHF broadband seamless interference technology.Output by single-channel switching technology.Effective power (channel power) is high, interference distance is far.Effective segmentation only interferes with drone contr...
+86 18138856898Features
PRODUCT FEATURE
Use of UHF broadband seamless interference technology.
Output by single-channel switching technology.
Effective power (channel power) is high, interference distance is far.
Effective segmentation only interferes with drone control and video transmission frequencies, and will not interfere to other frequencies.
Built-in battery (plug-in design, removable battery), lasting more than 30 minutes.
Imported devices, slow start circuit design, can avoid the mechanical switch caused by the ignition phenomenon, high integration, stable work.
PRODUCT PARAMETER
| Output End | Working Frequency | Average Output Power | Channel Output Power |
| 1.5G | 1550-1620MHz | 44dBm | 20dBm/30KHz(min) |
| 2.4G | 2400-2500MHz | 44dBm | 20dBm/30KHz(min) |
| 5.8G | 5720-5850MHz | 43dBm | 20dBm/30KHz(min) |
| 900M | 860-930MHz | 44dBm | 20dBm/30KHz(min) |
| 1.2G | 1180-1280MHz | 40dBm | 20dBm/30KHz(min) |
| 433MHz | 433MHz | 40dBm | 20dBm/30KHz(min) |
| Power Supply: AC220V-DC5V Power Consumption: 280W Weight: About 4.1Kg Packing Weight: about 10.5Kg Dimensions (width × height × length) : 67·30·7.5cm Outer Packing size: 77·40·14cm Interference Distance: 800-1500M (the specific distance depends on the model of the drone and the distance between the drone and the pilot) | |||
