+86 181388568981.Product Overview:
1、High-power 3-4 channel drone jammer backpack, designed to repel drones.
2、Equipped with high-gain omnidirectional antennas, providing a wide signal transmission range.
3、Features expandable digital jamming modules to counter drone frequency hopping and spread spectrum techniques.
4、Supports single-frequency control, with the option to operate multiple frequencies simultaneously to disable the drone.
5、The device is compact and lightweight, with a backpack design that allows for unrestricted movement, making it easy and convenient to use.
6、Disconnects the drone's control link and video transmission channels, preventing the transmission of video and photos, and disabling its ability to receive commands.
7、Camouflage appearance, ergonomic design, comfortable to carry, with a dedicated pocket for antennas and side vents for cooling and charging.
2、Product Specifications:
(1)Performance Parameters:
| No. | Name | value |
| 1 | Effective Jamming Range | 500-1500m (depending on drone model and environment) |
| 2 | Coverage Angle | 360° |
| 3 | Jamming Success Rate | ＞95% |
| 4 | Response Time | ≤3S |
| 5 | Number of Drones Jammed | ＞10drones |
| 6 | Operating Temperature | -20℃---+40℃ |
| 7 | Power Supply | DC24-28V |
| 8 | Battery | 25.9V/11A |
| 9 | Battery Life | 30min（4channels） |
| 50min（3channels） |
(2) Appearance parameters
| NO. | Name | value |
| 1 | Overall Size (with antennas) | 65*21*11CM |
| 2 | Overall Weight (with antennas) | 7.84KG |
| 3 | Appearance Structure | aluminium alloy |
| 4 | Product List:Main unit, antennas, power cable, camouflage bag | |
| 5 | Packaging Size：47*36*28CM | |
| 6 | Packaging Weight：8KG | |
| 7 | Packaging Type：Carton |
3、 Module frequency band
| NO. | Output Port | Operating Frequency | Average Output Power |
| 1 | 800M | 720-870MHz | 40W-50W |
| 2 | 900M | 870-1020MHz | 40W-50W |
| 3 | 2.4G | 2400-2500MHz | 40W-50W |
| 4 | 5.8G | 5725-5850MHz | 40W-50W |

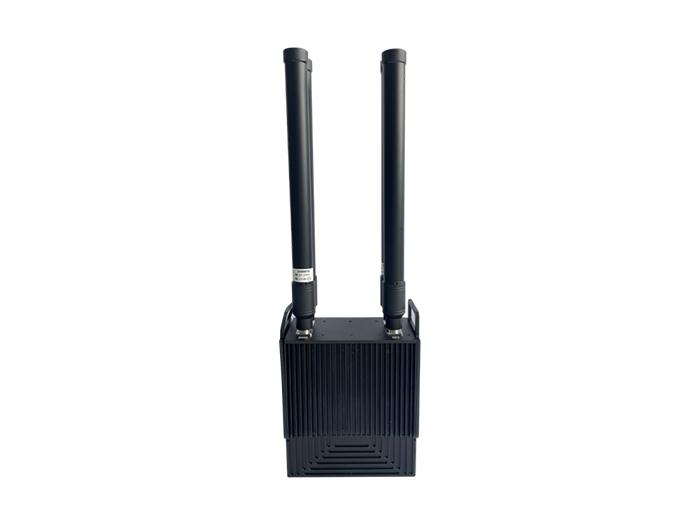

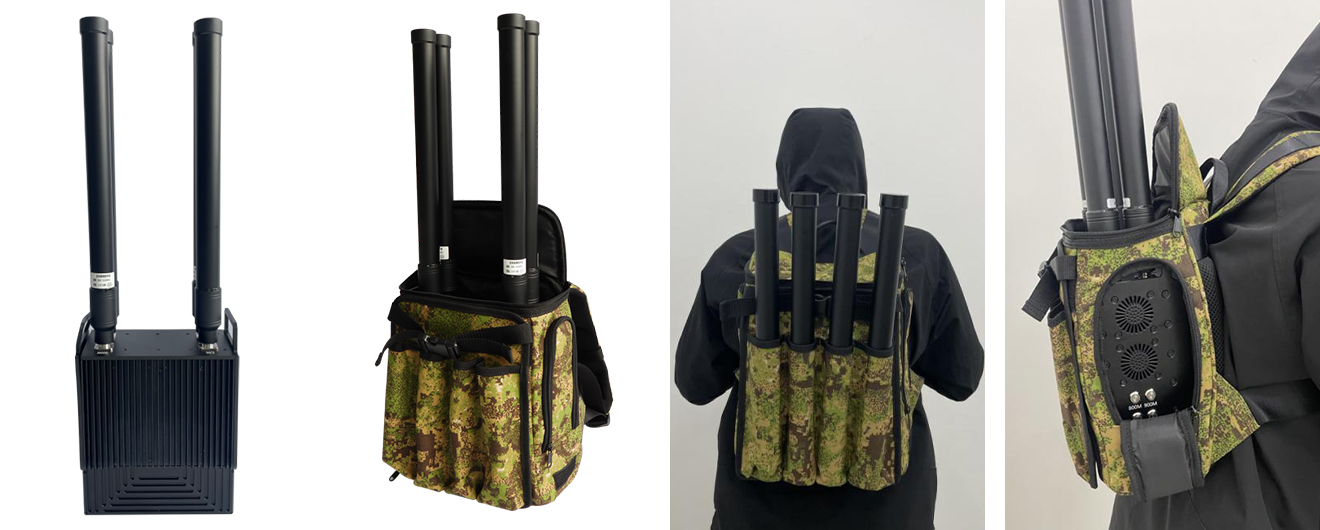

4.Product Images
