+86 181388568981. Product Overview
1.Precise Countermeasure: Uses digital ultra-high-frequency broadband seamless jamming technology, specifically targeting the common frequency bands of racing drones.
2.Comprehensive Defense: 360° all-around countermeasure against racing drones, capable of simultaneously neutralizing multiple drones.
3.Control Mode: Forced landing of drones.
4.Compact and Lightweight: Small size and light weight, making it easy to carry.
5.Simple Operation: One-button start design, simple to operate, and ready to use immediately.
6.Real-time Display: LED screen shows the battery status.
7.Long Battery Life: Equipped with a high-quality lithium battery for 1.5-2 hours of continuous operation.
8.Durable: Reinforced design for shock resistance and drop protection, with an external camouflage carrying bag.
2. Product Parameters
(1) Performance Parameters
| No. | Name | Value |
| 1 | Effective Countermeasure Range | 500-1000m (Urban environment) 1000-1500m (Open area) (depending on drone model and operating environment) |
| 2 | Coverage Angle | 360° |
| 3 | Antenna Gain | 4dbi |
| 4 | Jamming Success Rate | ＞95% |
| 5 | Response Time | ≤3S |
| 6 | Countermeasure Quantity | ＞10drones |
| 7 | Operating Temperature | -20℃---+40℃ |
| 8 | Power Supply | DC24-28V |
| 9 | Battery | 25.9V/5A |
| 10 | Battery Life | 100-120min |
(2) Appearance parameters
| No. | Name | Value | Remarks |
| 1 | Device Dimensions | 22.5*8.5*4.5cm | |
| 2 | Antenna Dimensions | 30*3.5CM | |
| 3 | Total Weight | 1.8kg | Device + Antenna + Camouflage Bag |
| 4 | Device Structure | Aluminum Alloy | |
| 5 | Packaging Type | Carton Packaging | |
| 6 | Packaging Dimensions | 36*25*10.5CM | |
| 7 | Packaging Dimensions | 2.4KG | |
| 8 | Product List | Main device, antenna, charger, camouflage bag |
3、 Module frequency band
| NO. | Output Port | Operating Frequency | Average Output Power | Remarks |
| 1 | 700-1000MHz | 40W | 46dBm | Digital Module |

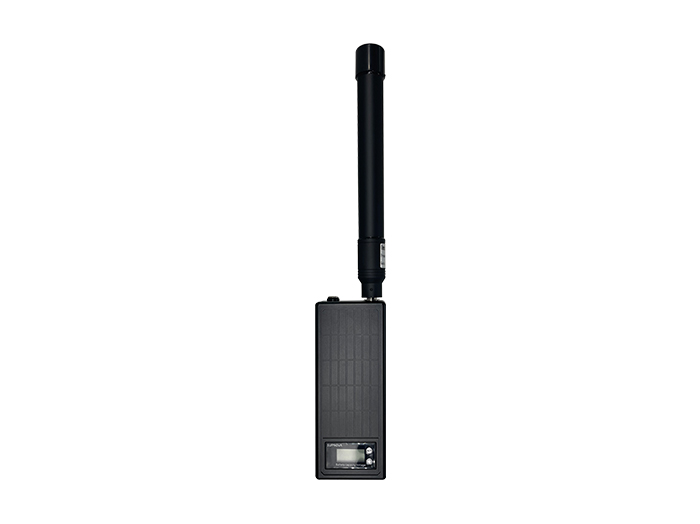

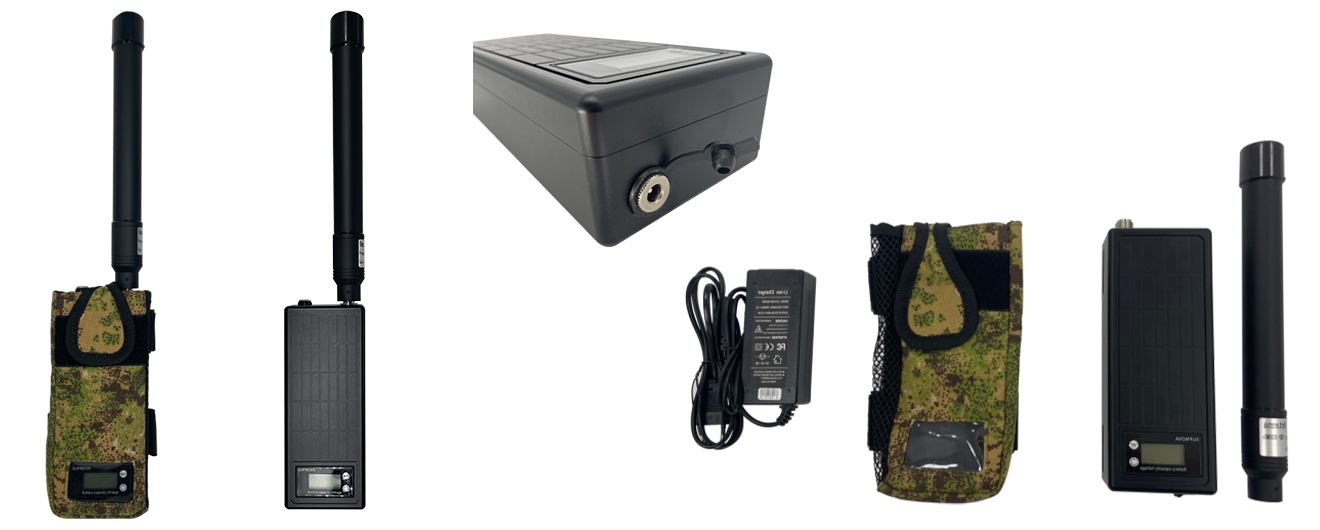

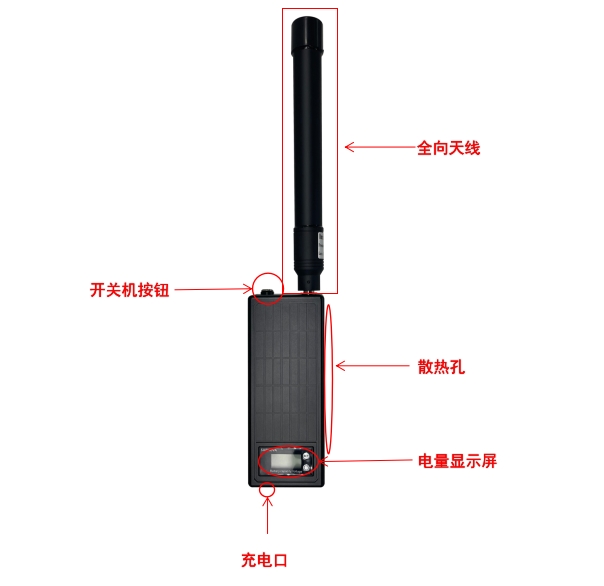

4. Product Images
5. Instructions for Use
1.Before use, check if the device is intact and if all accessories are complete.
2.Before use, fully charge the battery.
3.Connect the antenna to the main unit.
4.Press the power button to turn on the device.
5.After use, turn off the device by pressing the power button again.
