YA-G1 Fixed Countermeasure Device
Introduction
1. Product Introduction1.Single-channel countermeasure device with a die-cast aluminum alloy chassis design, resistant to damage.2.Equipped with a high-gain fiberglass omnidirectional antenna for 360° countermeasure of drones.3.Customizable...
+86 18138856898Features
1. Product Introduction
1.Single-channel countermeasure device with a die-cast aluminum alloy chassis design, resistant to damage.
2.Equipped with a high-gain fiberglass omnidirectional antenna for 360° countermeasure of drones.
3.Customizable frequencies, such as 1.5G, 2.4G, 5.2G, 5.8G.
2. Product Parameters
(1) Performance Parameters
| No. | Name | Value |
| 1 | Effective Countermeasure Range | 300-800m (depending on the drone model and usage environment) |
| 2 | Coverage Angle | 360° |
| 3 | Jamming Success Rate | ＞95% |
| 4 | Response Time | ≤3S |
| 5 | Operating Temperature | -20℃---+40℃ |
| 6 | Power Supply | DC24-28V |
| 7 | Battery | 25.9V/3.2A |
| 8 | Battery Life | 35min |
| 9 | Continuous Usage Time | Within 3 minutes (device without fan) |
(2) Appearance Parameters
| No. | Name | Value |
| 1 | Device Dimensions | 64*10.55*9.5CM |
| 2 | Device Weight | 1.72KG |
| 3 | Appearance Structure | Aluminum alloy |
| 4 | Product List：Main unit, omnidirectional antenna, power cable | |
| 5 | Packaging Dimensions：42.5*22.5*16.5CM | |
| 6 | Packaging Weight：2.4KG | |
| 7 | Packaging Type：Carton box | |
3. Module Frequency Bands
| Output Port | Working Frequency | Power | Remarks |
| 1.2G | 1160-1250MHz | 50W | |
| 1.5G | 1520-1650MHz | 50W | |
| 2.4G | 2400-2500MHz | 50W | |
| 5.2G | 5150-5350MHz | 50W | Available for upgrade |
| 5.8G | 5725-5850MHz | 50W | Available for upgrade |

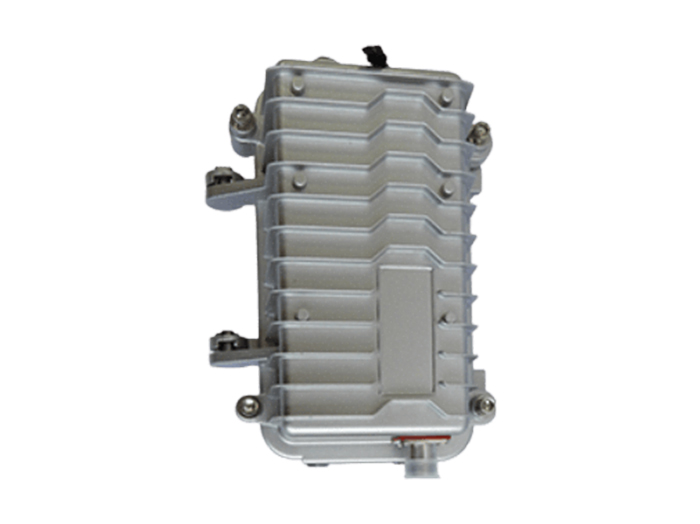

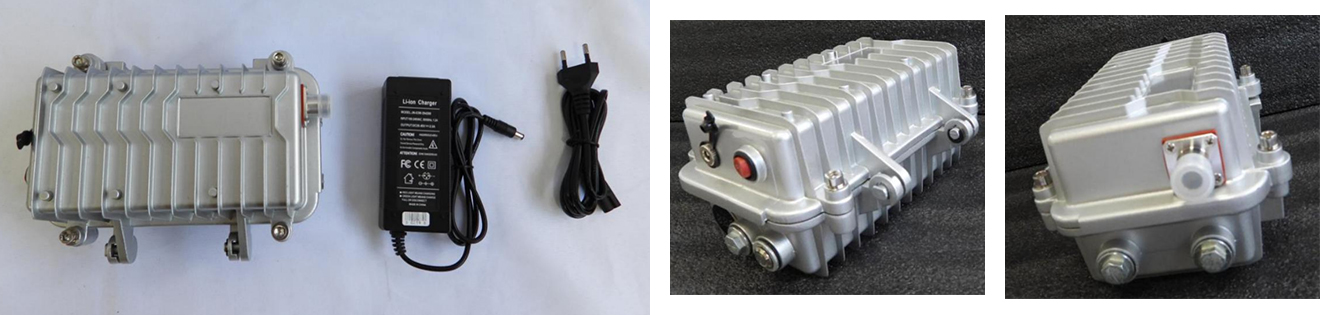

4.Product Images
