YA-G3 G4 Fixed Countermeasure Device
Introduction
1. Product IntroductionHigh-power fixed 3-4 channel full aluminum alloy die-cast casing design, anti-damage.Equipped with high-gain fiberglass omnidirectional antennas for 360° countermeasures against drones.Each channel has an independent ...
+86 18138856898Features
1. Product Introduction

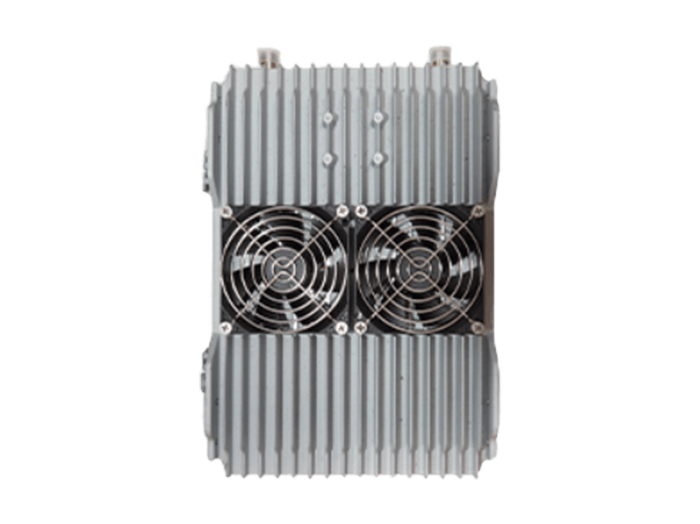

High-power fixed 3-4 channel full aluminum alloy die-cast casing design, anti-damage.
Equipped with high-gain fiberglass omnidirectional antennas for 360° countermeasures against drones.
Each channel has an independent module design, customizable frequency options.
Capable of cutting off remote control and video transmission signals from drones, such as 900M, 2.4G, 5.8GHz.
Dual external cooling fans to ensure stable operation of the device.
2. Product Parameters
(1) Performance Parameters
| No. | Name | Value | Remarks |
| 1 | Effective Countermeasure Range | 500-1000m （depending on the drone model and usage environment） | |
| 2 | Coverage Angle | 360° | |
| 3 | Jamming Success Rate | ＞95% | |
| 4 | Response Time | ≤3S | |
| 5 | Operating Temperature | -20℃---+40℃ | |
| 6 | Power Supply | Standard built-in boost module, uses DC12-24V power | optional AC220V external power |
(2) Appearance Parameters
| No. | Name | Value | Remarks |
| 1 | Device Dimensions | 74.3*23*14.5CM | |
| 2 | Device Weight | 7.74KG | |
| 3 | Appearance Structure | Aluminum alloy | |
| 4 | Product List：Main unit, omnidirectional antenna, power cable | Optional bracket available for extra cost | |
| 5 | Packaging Size：43.5*28.5*14.5CM | ||
| 6 | Packaging Weight：6.14KG | ||
| 7 | Packaging Type：Carton box | ||
3.Module Frequency Band
You can choose 3-4 frequency bands from the following:
| No. | Output Port | Working Frequency | Power |
| 1 | 433M | 420-450MHz | 50W |
| 2 | 900M | 800-900MHz | 50W |
| 3 | 1.2G | 1160-1250MHz | 50W |
| 4 | 1.4G | 1400-1520MHz | 50W |
| 5 | 1.5G | 1520-1650MHz | 50W |
| 6 | 2.4G | 2400-2500MHz | 50W |
| 7 | 5.2G | 5150-5350MHz | 50W |
| 8 | 5.8G | 5725-5850MHz | 50W |

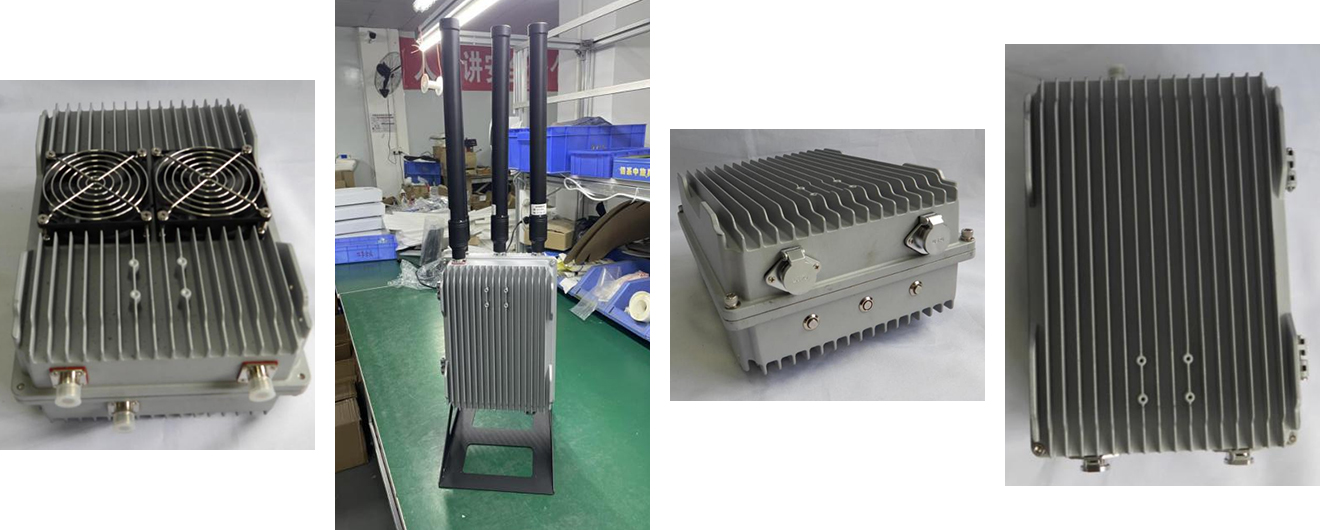

4. Product Images
(Default without bracket, optional bracket available for extra cost)
