+86 181388568981. Product Overview
1. The YA-G6/G8 fixed anti-drone system features a high-gain omnidirectional antenna.
2. Provides 360° comprehensive coverage with no blind spots for effective drone countermeasures.
3. Capable of neutralizing over 97% of commercial drone models.
4. Interference range reaches up to 1,000–2,500 meters.
5. Can be installed at high altitudes or mounted on vehicles for mobility.
6. Supports 24/7 unattended operation.
7. High output power of up to 400W disrupts drone communication and causes loss of control.
8. Highly integrated, all-in-one structure with no external components, ensuring compact and precise internal design.
9. Targets drones operating on standard remote control and video transmission frequencies, such as 1.5GHz, 2.4GHz, and 5.8GHz.
10. Constructed with a high-power 6–8 channel aluminum die-cast chassis for durability and anti-damage capabilities.
11. Equipped with four to eight large waterproof fans to enable rapid heat dissipation and stable operation.
2. Product Specifications
Performance Parameters
| No. | Name | Value |
| 1 | Effective Range | 1,000–2,500m (depending on drone type and environment) |
| 2 | Coverage Angle | 360° |
| 3 | Interference Success Rate | >95% |
| 4 | Response Time | ≤3 seconds |
| 5 | Neutralized Drones | >10 simultaneously |
| 6 | Operating Temperature | -40°C to +60°C |
| 7 | Power Supply | AC220V |
Appearance Parameters
| No. | Name | Value |
| 1 | Device Dimensions (with antenna) | 108*43*27cm |
| 2 | Device Weight (with antenna) | 28.58kg |
| 3 | Structure | Aluminum alloy |
| 4 | Protection Level | IP66 |
| 5 | Included Components | Main unit, antenna, power cable |
| 6 | Packaging Dimensions | 63.5*57*45cm |
| 7 | Packaging Weight | 35kg |
| 8 | Packaging Type | Carton box |
3. Module Frequency Bands
| No. | Output Port | Frequency Range | Power |
| 1 | 433M | 420–450MHz | 50W |
| 2 | 800M | 800–900MHz | 50W |
| 3 | 900M | 900–1,020MHz | 50W |
| 4 | 1.4G | 1,400–1,520MHz | 50W |
| 5 | 1.5G | 1,520–1,650MHz | 50W |
| 6 | 2.4G | 2,400–2,500MHz | 50W |
| 7 | 5.2G | 5,150–5,350MHz | 50W |
| 8 | 5.8G | 5,725–5,850MHz | 50W |

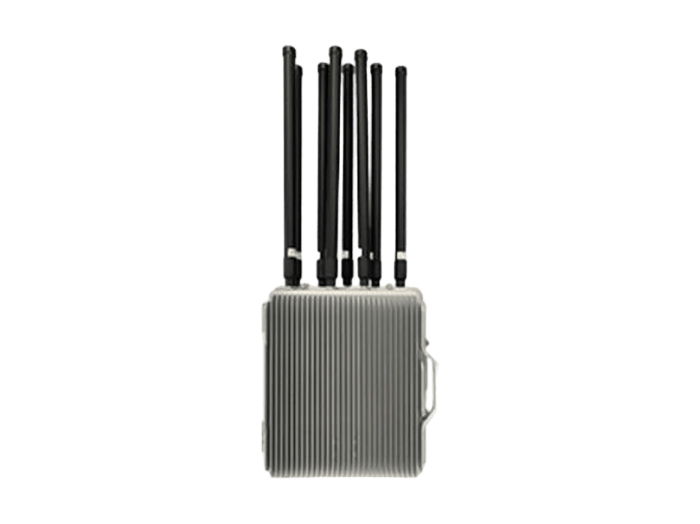

4. Product Images
*Please refer to the original document for product images.*
**Company Website:** https://www.yueanuav.com/
