+86 181388568981.Product Introduction:
1.The device is equipped with an automatic detection system, capable of detecting drone signals and automatically initiating countermeasure procedures.
2.The reconnaissance and strike functions are integrated into a single unmanned, 24/7 operational device.
3.The device effectively targets drone remote control and video transmission frequency bands, such as: 900M, 1.5G, 2.4GHz, and 5.8GHz.
4.The design features a highly integrated, all-in-one unit with the detection module built into the casing, and external detection and jamming antennas.

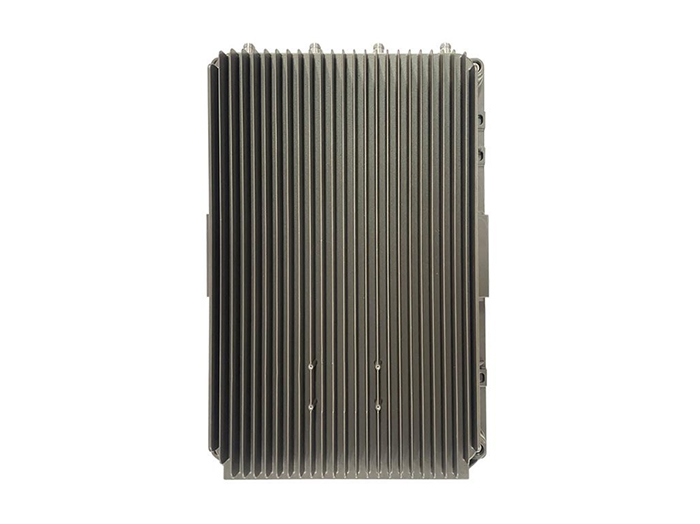

5.The main unit’s casing is made from a durable die-cast aluminum enclosure, with an IP66 protection rating, and includes an external waterproof fan for enhanced stability during long-term use.
2. Product Parameters:
(1) Performance Parameters:
| No. | Name | Value |
| 1 | Effective Detection Range | 1000-2500m (depends on drone model and operating environment) |
| 2 | Detection Frequency Bands | 2.4G、5.8G |
| 3 | Effective Jamming Range | 1000-2500m |
| (depends on drone model and operating environment) | ||
| 4 | Coverage Angle | 360° |
| 5 | Jamming Success Rate | ＞95% |
| 6 | Response Time | ≤3S |
| 7 | Operating Temperature | -20℃---+40℃ |
| 8 | Power Supply | AC220V |
(2) Appearance Parameters:
| No. | Name | Value |
| 1 | Device Dimensions | 113*41*23CM |
| 2 | Device Weight | 32.3KG |
| 3 | Appearance Structure | Aluminum alloy |
| 4 | Protection Rating | IP66 |
| 5 | Product List：Main unit, detection + jamming antennas, power cable | |
| 6 | Packaging Size：73*55*51CM | |
| 7 | Packaging Weight：50KG | |
| 8 | Packaging Type：Carton Box | |
3. Module Frequency Bands:
| No. | Output Port | Working Frequency | Power |
| 1 | 433M | 420-450MHz | 50W |
| 2 | 800M | 800-900MHz | 50W |
| 3 | 900M | 900-1020MHz | 50W |
| 4 | 1.2G | 1160-1250MHz | 50W |
| 5 | 1.5G | 1520-1650MHz | 50W |
| 6 | 2.4G | 2400-2500MHz | 50W |
| 7 | 5.2G | 5150-5350MHz | 50W |
| 8 | 5.8G | 5725-5850MHz | 50W |

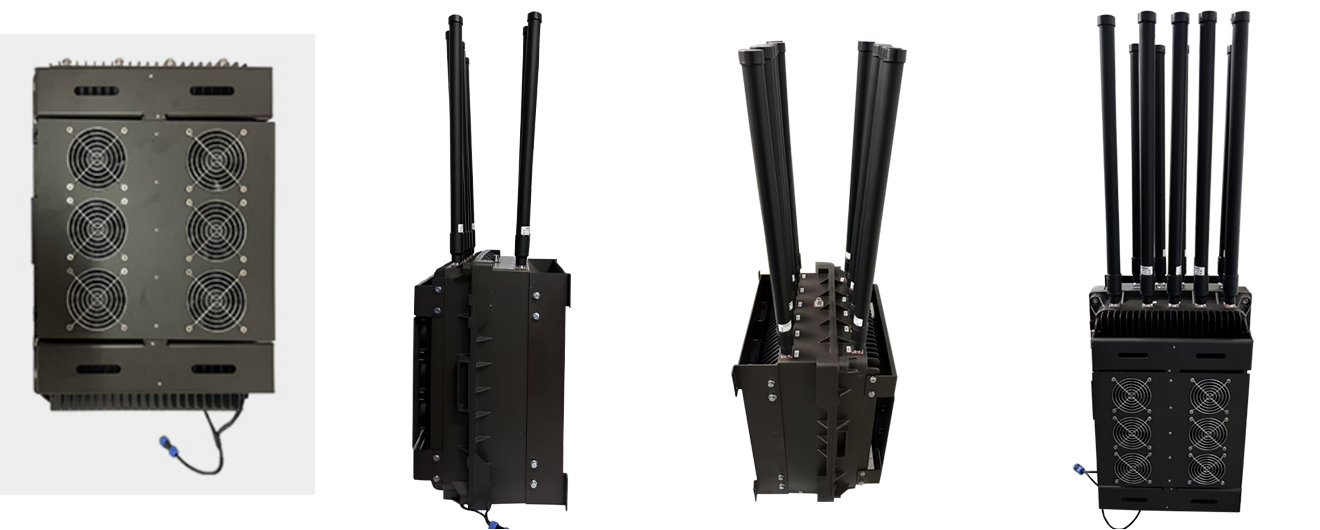

4. Product Images:
