+86 181388568981.Product Overview:
1.Equipped with a detection handle, capable of detecting drones and automatically jamming their signals.
2.Supports both automatic and manual jamming modes, with options for linked or independent operation modes.
3.Detection range: 1–1.5 kilometers; Jamming range: 1–1.5 kilometers.
4.2.8-inch color display, supporting Chinese, English, and Russian languages.
5.Adjustable screen brightness, with vibration and sound alerts, which can be turned off.
6.Customizable frequency band settings, with options for single, multiple, or full-band operation.
7.Built-in battery with a power display screen and an integrated design; supports external backup batteries for extended use.
8.Offers two types of external antennas: omnidirectional and handheld directional plate antennas.
9.The linked detection function helps extend the backpack's operational time and reduces unnecessary energy consumption.
2. Product Specifications:
（1）Performance Parameters:
Name | Value | Remarks | |
1 | Effective Detection Range | 1000-1500m （depends on drone model and environment） | |
Effective Jamming Range | 1000-1500m （depends on drone model and environment） | ||
3 | Coverage Angle | 360°/Diretioneal | |
4 | Jamming Success Rate | ＞95% | |
5 | Response Time | ≤10S | |
6 | Operating Temperature | -20℃---+40℃ | |
7 | Power Supply | DC24-28V | |
8 | Battery | 25.9V/20A | External handheld battery available for additional cost |
9 | Battery Life | 40min |
(2) Appearance parameters
NO. | Name | Value | Remarks |
1 | Device Size | 55*37*22CM | |
2 | Device Weight | +2.68KG（Omnidirectional Antenna）+2.48KG（Directional Antenna） | |
3 | Omnidirectional Antenna Size | 60*3.5CM | 可付费升级为弹簧天线 |
4 | Directional Antenna Size | 39*39*5.5CM | |
5 | Appearance Structure | ABS | |
6 | Product List：Main unit, detection remote handle, omnidirectional antenna, directional antenna, power cable, aviation case | ||
7 | Packaging Size：74.5*44*40.5CM | ||
8 | Packaging Weight：34.5KG | ||
9 | Packaging Type：Aviation Case | ||
3. Module Frequency Bands:
NO. | Output port | Operating Frequency | power |
1 | 433M | 428-438MHz | 50W/47dbm |
2 | 900M | 860-930MHz | 50W/47dbm |
3 | 1.2G | 1160-1280MHz | 50W/47dbm |
4 | 1.4G | 1400-1450MHz | 50W/47dbm |
5 | 1.5G | 1550-1620MHz | 50W/47dbm |
6 | 2.4G | 2400-2500MHz | 50W/47dbm |
7 | 5.2G | 5150-5350MHz | 50W/47dbm |
8 | 5.8G | 5725-5850MHz | 50W/47dbm |

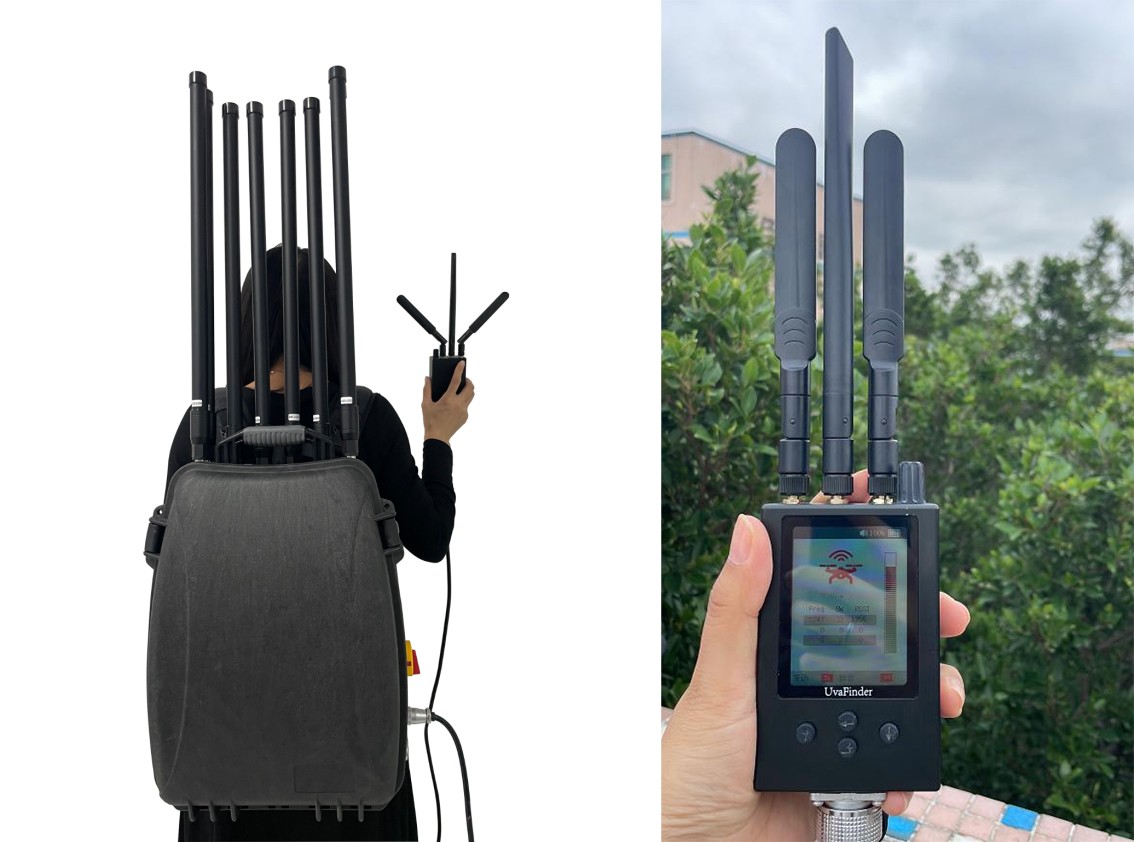

4. Product Images
5. Operating Procedure:
1.Check the device for any visible damage and verify that all accessories are complete according to the product list.

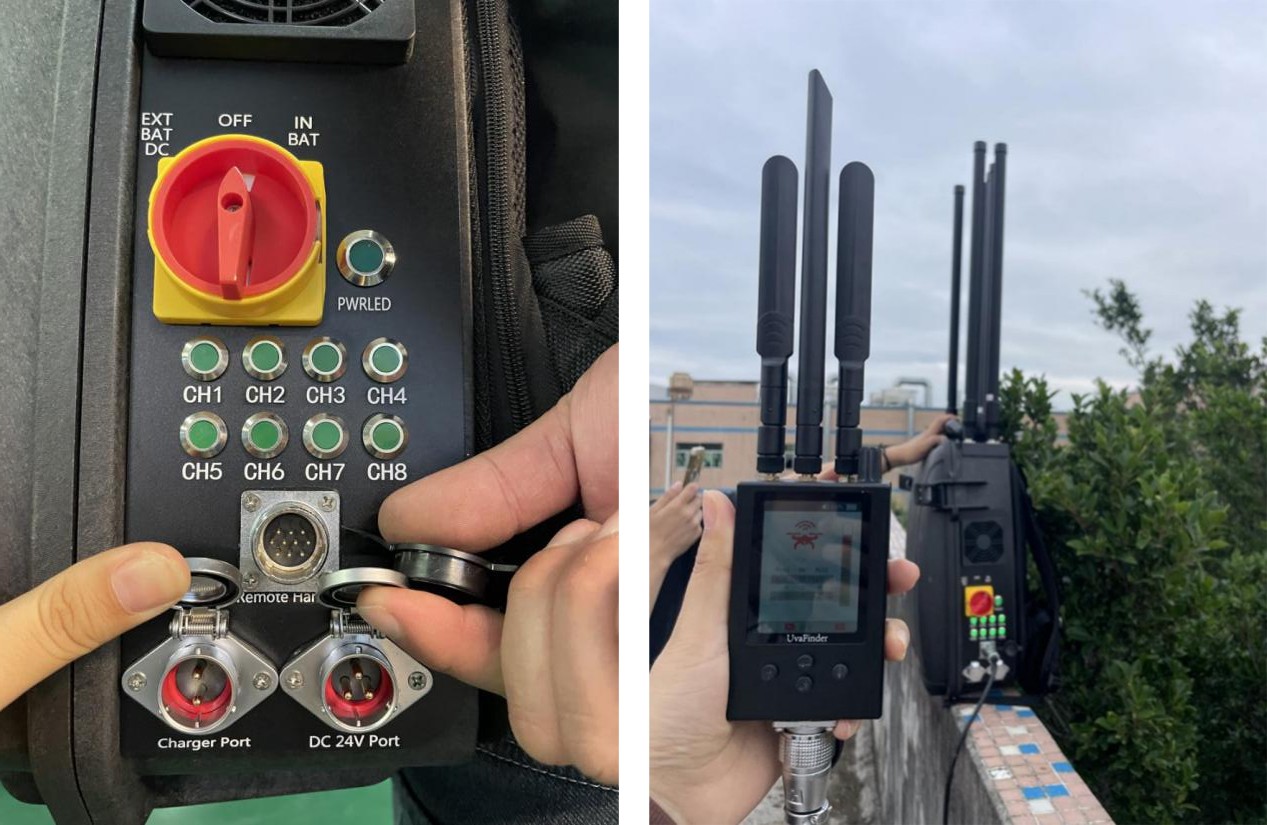

2.Connect the antennas to the corresponding ports on the main unit and tighten them.
3.Connect the detection handle and detection antenna to the main unit as labeled.
4.Turn on the handle, and the handle's display will light up. Perform the necessary operations via the handle’s interface. For detailed operations, refer to Section 6.
5.For directional antenna use, simply point the antenna in the direction of the drone to be jammed.
6.The jamming device will activate within 30 seconds, causing the drone to be repelled or forced to land.
7.After the jamming is finished, turn off both the handle and backpack power.
6.Quick Use of Detection Handle:
The detection handle has four function buttons: Confirm button, Return button, Up button, and Down button. These can be used to operate the device.
1.Turn the switch and volume control knob clockwise to power on. After turning on, continue rotating clockwise to increase the volume, or counterclockwise to decrease the volume.

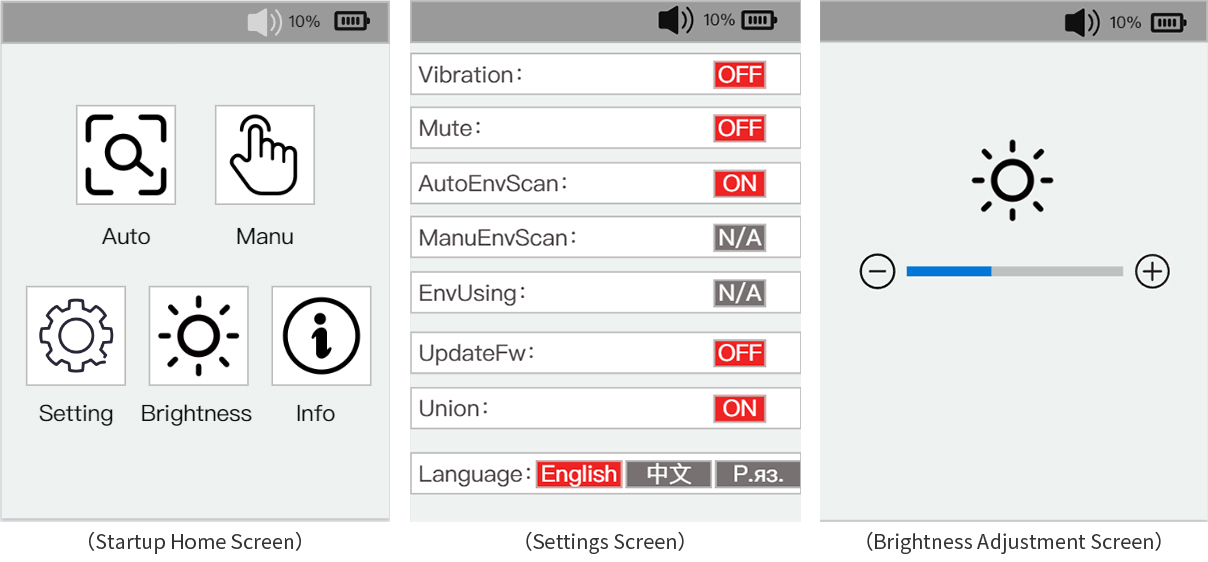

2.Upon powering on, the main screen will appear, which includes five functional tabs: Auto Detection, Manual Operation, Settings, Brightness Adjustment, and Device Information.
3.Press the Down button to select the "Auto Detection" option.

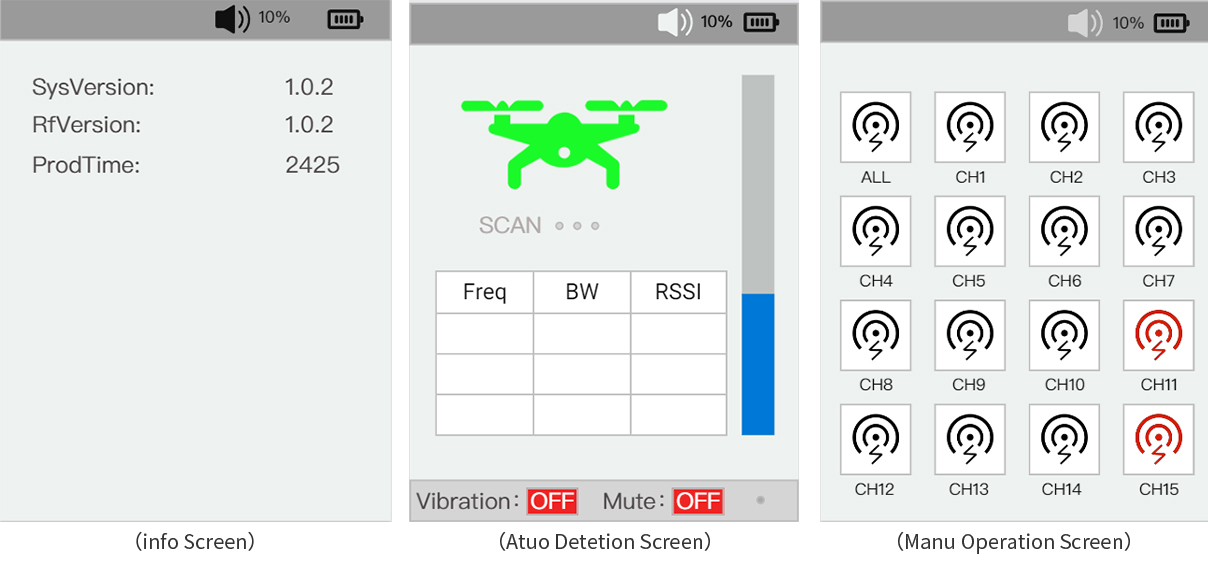

4.Press the Confirm button to enter the Auto Detection screen, where "Freq" displays the detected frequency (MHz), "BW" shows the signal bandwidth (MHz), and "RSSI" indicates the signal strength. The bar on the right shows signal strength.
5.You can use the Up and Down buttons to quickly enable or disable vibration and mute functions.
6.To manually operate the jammer, enter the Manual (Manu) screen.
7. Detection Handle Function Settings:
1.Vibration Settings:
In the settings screen, use the Up and Down buttons to select vibration settings. Press the Confirm button to toggle vibration on or off.
2.Mute Settings:
In the settings screen, use the Up and Down buttons to select mute settings. Press the Confirm button to toggle mute on or off.
3.Environmental Scanning Settings:
In the settings screen, select the auto environmental scanning option. By default, the auto scan is on. To perform manual scanning, turn off auto scanning, and enable the manual scanning option. When the scan is complete, the system will show “OFF”, indicating the scan is finished. You can then use the scanned data for further actions.
4.Firmware Upgrade:
For firmware upgrades, refer to the "Firmware Upgrade Instructions" appendix.
5.Linked Function Settings:
By default, the handle and backpack operate in linked mode. In auto detection mode, when the handle detects a drone, the backpack will automatically jam it. To use the handle as an independent detector (without guiding the backpack to jam), disable the linked function. This will allow the handle to function as a standalone drone detector.
6.Language Settings:
In the settings screen, select the language option and choose the preferred language.
7.Brightness Settings:
In the brightness option, adjust the screen brightness using the Up and Down buttons.
8.Device Information:
In the information option, you can view the firmware version and production date of the device.
