+86 181388568981. Product Overview:
1.Equipped with a Detection Handle – Capable of detecting drones and automatically initiating jamming.
2.Automatic and Manual Jamming Modes – Both interaction mode and independent mode can be set.
3.Detection Range – 1 to 1.5 kilometers, Jamming Range – 1 to 1.5 kilometers.
4.2.8-inch Color Display – Supports Chinese, English, and Russian.
5.Adjustable Screen Brightness – Includes vibration and sound alarms, which can be turned off.
6.Customizable Frequency Bands – Can be set to operate single, multiple, or all frequency bands.
7.Removable Battery Design – Easy to replace and transport with a battery level display; supports external backup batteries.
8.Two Antenna Modes – External omnidirectional antenna and handheld directional antenna.
9.Extended Backpack Usage – Detection linkage mode reduces unnecessary energy consumption and extends the backpack's operating time.
10.Aluminum Alloy Shell with Cooling Fins – Better heat dissipation, more stable performance.
2.Product Specifications
(1) Performance Parameters
No. | Name | Value | Remarks |
1 | Effective Countermeasure Range | 1000-2000m （Dependent on drone model and environment） | |
2 | Coverage Angle | 360°/Directional | |
3 | Jamming Success Rate | ＞95% | |
4 | Response Time | ≤3S | |
5 | Countermeasure Quantity | ＞10drone encounters | |
6 | Operating Temperature | -20℃---+40℃ | |
7 | Power Supply | DC24-28V | |
8 | Battery | 25.9V/25A | Optional external battery available for purchase |
9 | Battery Life | 40min |
(2) Appearance Parameters
No. | Name | Value | Remarks |
Device Size | 120*35*14CM | ||
2 | Device Weight | 19KG +2.68KG（Omnidirectional Antenna）+2.48KG（Directional Antenna） | |
3 | Omnidirectional Antenna Size | 60*3.5CM | Optional upgrade to spring antenna for additional fee |
4 | Directional Antenna Size | 39*39*5.5CM | |
5 | Battery Size | 32.2*12*10CM | |
6 | Battery Weight | 4.76KG | |
7 | Exterior Material | Aluminum Alloy | |

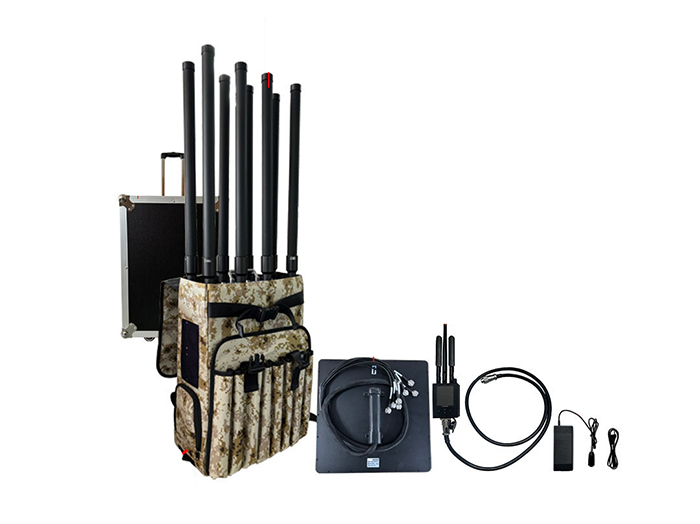

8 | Product List:Main unit, battery, remote control handle, omnidirectional antenna, directional antenna, power cord, aviation case | ||
9 | Packaging Dimensions：74.5*44*40.5CM | ||
8 | Packaging Weight：34.5KG | ||
9 | Packaging Type：Aviation case | ||
3.Module frequency band
NO. | Output Port | Operating Frequency | power |
1 | 433M | 428-438MHz | 50W/47dbm |
2 | 900M | 860-930MHz | 50W/47dbm |
3 | 1.2G | 1160-1280MHz | 50W/47dbm |
4 | 1.4G | 1400-1450MHz | 50W/47dbm |
5 | 1.5G | 1550-1620MHz | 50W/47dbm |
6 | 2.4G | 2400-2500MHz | 50W/47dbm |
7 | 5.2G | 5150-5350MHz | 50W/47dbm |
8 | 5.8G | 5725-5850MHz | 50W/47dbm |

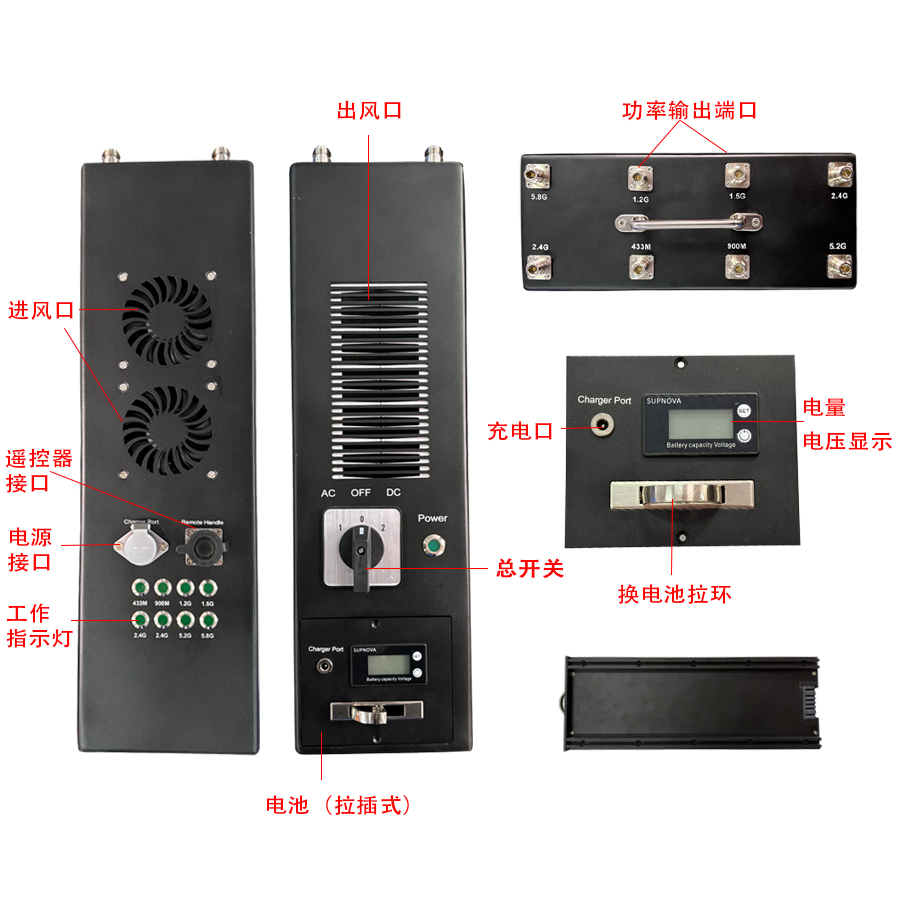

4. Product Images
5. Operating Process
1.Check the Device Appearance – Ensure the device is intact and verify the accessories against the product list.

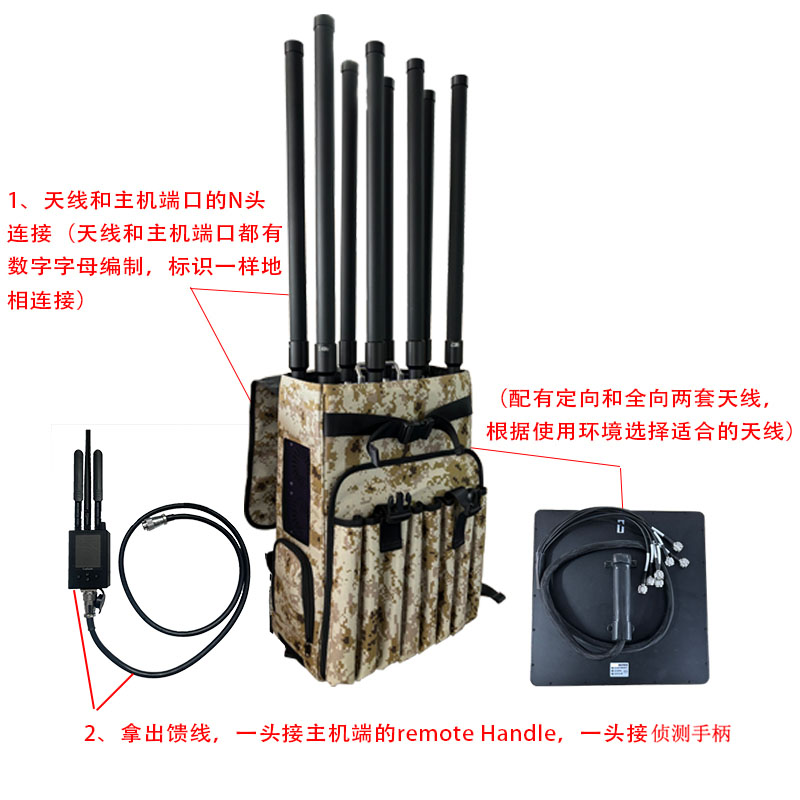

2.Connect the Antennas – Ensure the antenna connectors match the device ports, then securely attach the antennas.
3.Connect the Detection Handle – Attach the detection antenna to the handle and connect it to the main unit.
4.Power On the Handle – The display on the handle should light up. Operate the device as instructed in Section 6.
5.Check Battery Level – Press the battery level display button to check if there is sufficient charge.
6.Operate the Handle – Hold the handle and point it towards the drone you wish to counteract.
7.Countermeasure Activation – Within 30 seconds, the device will activate, forcing the drone to retreat or land.
8.End Countermeasure – Turn off the handle and backpack power after the operation is complete.
6. Quick Guide for Detection Handle Use
The detection handle has 4 functional buttons: Confirmation, Back, Up, and Down. These can be used to control the device.
1.Power On – Turn the switch clockwise to power on, and adjust the volume by rotating the knob (clockwise to increase, counterclockwise to decrease).

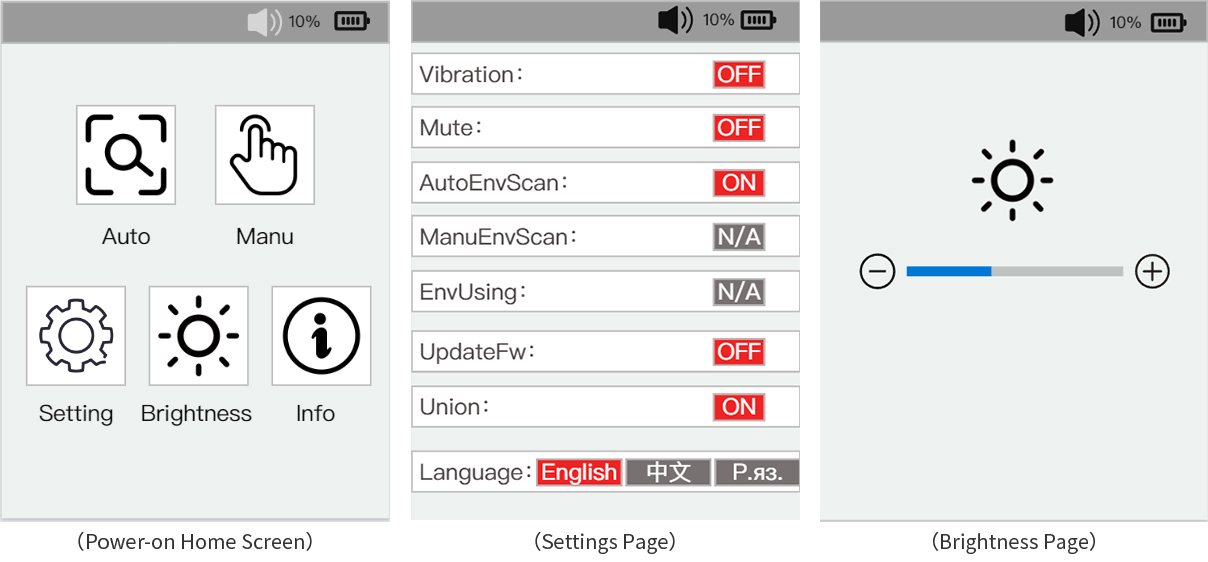

2.Main Interface – After powering on, the main interface will display 5 function tabs: Auto Detection, Manual Operation, Settings, Brightness Adjustment, and Device Information.
3.Auto Detection – Press the down button to select "Auto Detection."

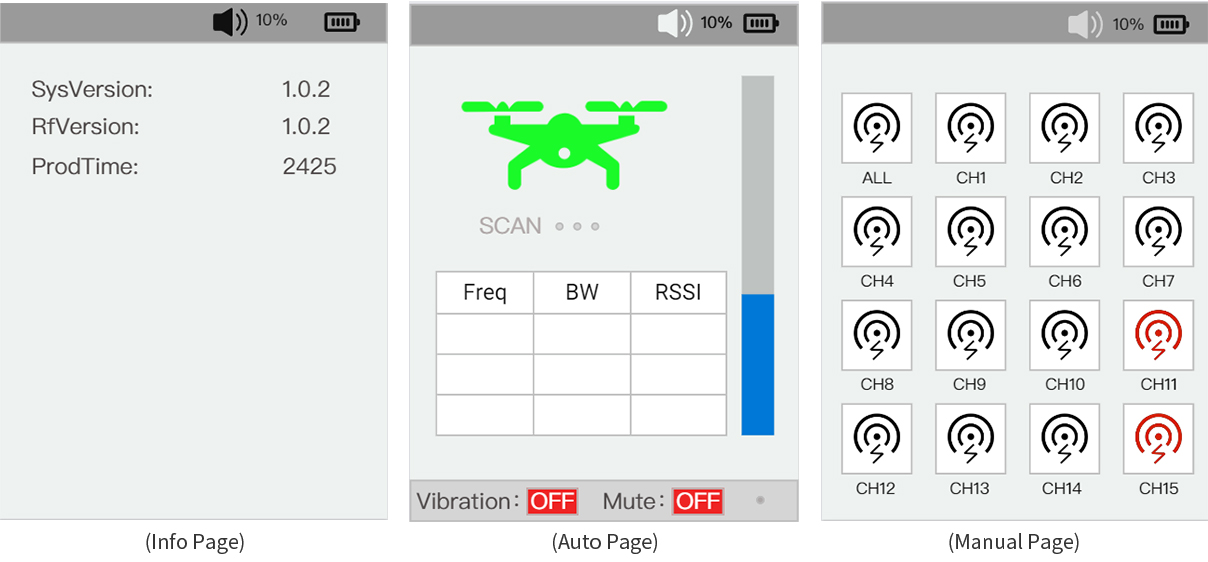

4.Detection Interface – In the auto detection interface, Freq represents the detected frequency (in MHz), BW represents the detected bandwidth (in MHz), and RSSI indicates signal strength. The signal strength bar is displayed on the right side.
5.Vibration and Mute – You can quickly toggle vibration and mute functions using the up and down buttons and the confirmation button.
6.Manual Mode – Enter the Manu interface to manually initiate countermeasures.
7. Detection Handle Function Settings
1.Vibration Settings – Open the settings menu from the main interface, navigate to vibration settings, and toggle vibration on/off using the confirmation button.
2.Mute Settings – Open the settings menu from the main interface, navigate to mute settings, and toggle mute on/off using the confirmation button.
3.Environment Scan Settings – Open the settings menu, select the automatic environment scan option. By default, automatic scanning is enabled. If manual scanning is needed, disable auto-scan, and wait for the environment scan to finish before enabling the data.
4.Firmware Upgrade – If firmware upgrade is required, refer to the firmware upgrade instructions in the appendix.
5.Linked Function Settings – The handle works in Linked Mode with the backpack by default. In automatic detection, it will trigger the backpack to counteract drones. If you want the handle to function independently without triggering the backpack, disable the linked function.
6.Language Settings – Open the settings menu, select language settings, and choose your preferred language.
7.Brightness Settings – Open the brightness settings menu and adjust the screen brightness using the up and down buttons.
8.Device Information – Open the device information menu to view firmware version and production date details.
