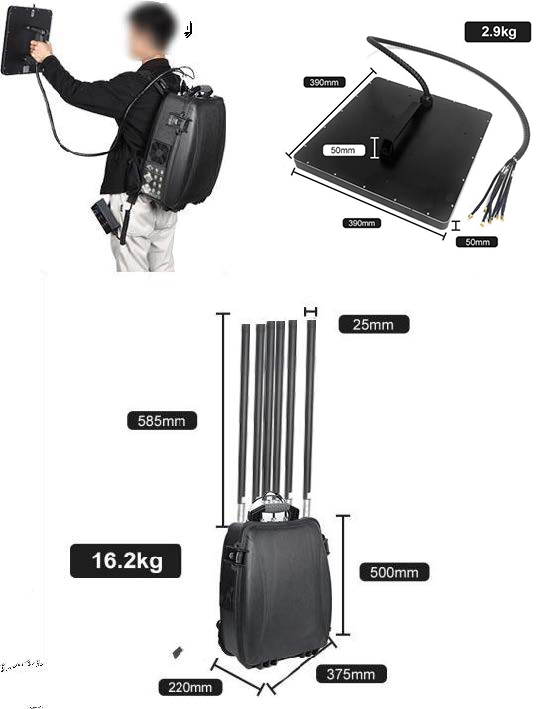

YA-W-08 is a backpack type UAV signal jammer for personal use with built-in rechargeable battery.
*Adopting high-gain omnidirectional antenna, it can automatically force the UAV to take off or land within a radius of 500~1000 meters;
*You can also use high-gain directional antenna to aim at the UAV, forcing the UAV to leave or land around 1000 to 1500 meters;
*The distance of both depends on the real environment.
PRODUCT FEATURES
*2 different antennas can be used
*8 channel jamming frequency
*High output power 400W, effective and stable jamming
*Solid and high-gain antenna
* *Durable military resin shell: waterproof, dustproof, heat-resistant and corrosion-resistant
*Intelligent heat dissipation design: built-in super heat sink, large cooling fan, bring cold air in and blow hot air out
*Built-in lithium battery can be used continuously for 1 hour
*Backpack style, easy to move
*With AC and DC charging function
PRODUCT SPECIFICATIONS
| Product Type | Backpack drone jammer |
| Interference Range | Radius 1000-1500 meters (OMNI antenna) |
| Range 1500-1500 meters (panel antenna) | |
| (depending on the actual environment) | |
| Operating Channels | 433MHz:428-438MHz,50W |
| GPSL1:1560-1620MHz,50W | |
| GPSL2:1170-1280GHz,50W | |
| 6G:5925-7125MHz,50W | |
| WiFi2.4G:2400-2485MH z,50W | |
| WiFi5.8G:5725-5850MHz,50W | |
| 5.2G:5150-5350Hz,50W | |
| 900:920-960MHz,50W | |
| 8 channels in total | |
| Total Output Power | 400W |
| Body Size | 49*35*19CM |
| Weight | 16.8kg |
| External Antenna | High gain 16dBi panel directional antenna |
| Operating Temperature | -20℃~75℃ |
| Operating Humidity | 35~95% |
| Power Consumption | <800W |
| Power Input 1 | AC100V~240V |
| Power Input 2 | DC24V |
| Built-In Battery | DC24V30A |
| Battery Life | 1 hour |
PACKING LIST
1pc*Backpack Signal Jammer
8pcs*High Gain Omnidirectional Antennas
1pc*Panel Antenna for PC
1pc*AC Power Charger
1pc*DC Charger
